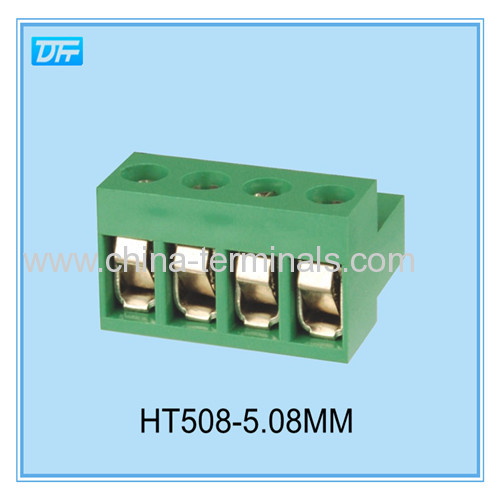

150V 12A Plug-In Terminal Blocks & Accessories Products pitch 5.08mm

Model No: HT508
Place of Origin: Zhejiang,China (Mainland)
Brand Name: KF/DFT
color: yellow/green
pitch: 5.08mm
certification: UL, CE, CQC
Type: Female
wire range: 24-12 AWG
rated: 150V 12A
Strip Length: 7-8mm
Torque: 0.4Nm

inquire

skypebasketAdd to Basket  Edit

Share |

Product Description

Product Culture
Payment & Shipping Terms Supply Capacity
Unit Price: 0.01~0.02 USDProduction Capacity:10,000-20,000pins each...
Payment Term:L/C, Western Union, T/T, PaypalPacking:inner bag, box and...
MOQ:100 poleDelivery Date:Lead time according to...
Means of Transport:by air or by sea, Ocean, Air

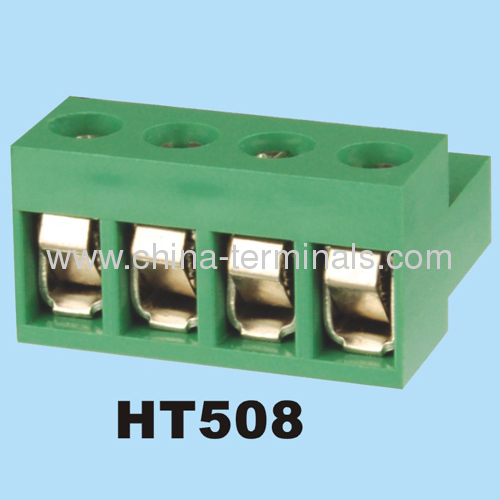

Description of 150V 12A Plug-In Terminal Blocks & Accessories Products pitch 5.08mm

Model:HT508
pitch:5.08mm

china supplier of 150V 12A Plug-In Terminal Blocks & Accessories Products pitch 5.08mm

1.Material
Screws: M2.5 steel Zinc plated
Contact: Brass
Pin header: Brass, Tin plated
Housing: PA66, UL94V-0

2.Electrical
Rated voltage: 150V
Rated current: 12A
Contact resistance: 20mΩ
Insulation resistance: 5000MΩ/1000V
Withstanding Voltage: AC1500V/1Min
Wire range: 24-12AWG 2.5mm²

3.Mechanical
Temp. Range: -40ºC~+105ºC
MAX Soldering: +250ºC for 5 Sec.
Torque: 0.4Nm (3.6lb.in)
Strip length: 7-8mm

4.Drawing of pluggable terminal block HT508

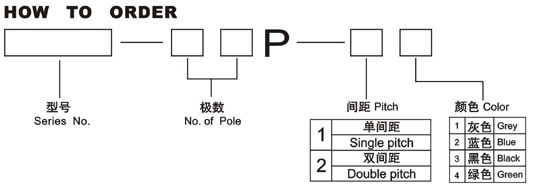

5.How to order

6. Package data, as follows,

Carton size :cm
1) 28*28*42
2) 52.5*29*48
3)63.5*28.5*40.5
4) 66.5*44.5*26.5


7.Range of application, such as,

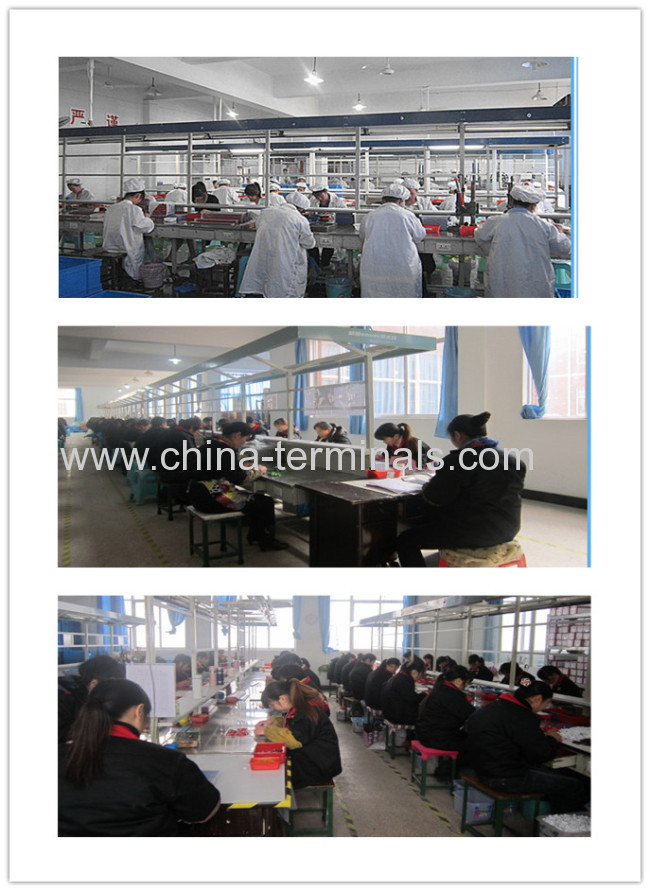

8.KaiFeng workshop of pluggable terminal block


150V 12A Plug

-In Terminal Blocks & Accessories Products pitch 5.08mm HT508 has been presented above.   It is good in quality and competitive in price .If you want more detailed information of this product or related problems, please contact with us, we will reply as soon as possible (general in 24 hours).





Product Culture

The ultimate savior of electrical equipment : Pluggable Terminal Blocks
In the ubiquitous electrical equipment , electrical equipment terminals is the heart of the internal components , including plug-in terminals in which the use of the most widely used and most popular trust and love.
Pluggable Terminal advantage very much, first of all it is very simple to use , just put it into the corresponding slot , gently tighten with a screwdriver to complete the interconnection of electronic components . Second, it can increase the life of the electrical components of a long period of time , it requires a very small current , the electronic component connection portion to achieve the desired very stable effect . Second, a wide range of its shape , with horizontal layout , there is high column , with cylindrical -type style so dizzying . Not only to attract the public eye , and its price is very affordable , cost is very high . Able to meet all the needs of the public .
Finally Pluggable Terminal maintenance is very simple, just gently tighten the screws , you can easily take it out, put on the same model can allow electrical equipment to continue working , and convenient.
